振動切片機（Vibrating Microtomes）

5100mz-Plus是性價比很高的精密儀器，Z軸偏轉1-2µm時刀片可預先調整為以10µm/s

的速度運動。切片截面厚度步長為0.001mm。自身配備的Z軸就能對其進行校準驗證。

包括神經組織，心臟，肺或更多臟器用于視覺修補的切片在內，所有類型的切片都可以

當次微米Z軸以各種振動速度和振幅偏轉1-2µm時，5100mz-Plus每次都能得到完美的切片，

新用戶界面操作簡單，功能齊全。5100mz與7000smz-2按鍵操作相似。多種功能包括簡單操作按鈕或根據自身的參數選擇來設置一系列可變的程序化參數、菜單。

通過使用冰水浴或電子的熱電冷卻器能冷卻組織。其他選擇包括使用LED冷光源或者切片時使用放大鏡或體視鏡能更清晰的觀察。

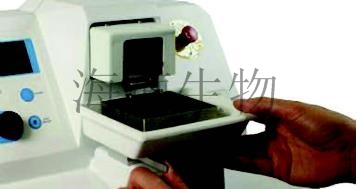

新型5100mz系列振動超薄切片機，與優質的7000smz-2共享用戶界面，方便用戶自行設置一系列可調參數。使用時可以完全手動操作，或者選擇半自動化的“切片窗口”模式（自動存儲切片起始和結束的位點）。

5100 Series: Control box on umbilical cord ideal for operation in an isolated environment

5100mz-Plus最適合長時間保持切片活性，比如應用于電生理學領域進行數據記錄。通過調節刀片架和光學校準裝置，用戶能調整Z軸上的刀片偏轉2µm 。Z軸偏轉越小越能減少顫動，從而將切片表面的損傷降到最低，最大限度的保留切片表面的細胞活性。



5100mz-Plus and 5100mz:

l 只有5100mz-Plus具有Z軸校準功能

l Z軸機械誤差不到10µm

l 振動速度50-80Hz

l 振幅范圍0.5mm-1.5mm

l 可精確控制刀片行進速度（最小速度：0.1mm/sec）

l 設置刀片行進的起點和終點位置

l 遙控器可以滅菌使用

l 冰水浴鍋很容易移除進行清潔

l 可選擇冷光源和放大器觀察更清晰

l 可選擇半導體冷卻鍋

l 操作，手動設置都能完全使用遙控器



基本參數：

規格	5100mz series
Section thickness step size	1µm
Vertical (Z-Axis) calibration device Campden's 'Opti-cal' is calibrated with metrology equipment traceable to National Standards	'Opti-cal' included as standard for 5100mz-Plus Optional extra for 5100mz
Optimal Z-axis Deflection	≈ 5-8µm (2.0µm ± 0.1 with calibration upgrade kit)
Max specimen size	33x50x19
Maximum (vertical) travel of bath table	19mm
Memory to store section thickness	Yes
Multiple user settings	8 different
Cutting head advance speed while slicing	From a minimum of -1.00mm/sec, through zero to a maximum of +1.00mm/sec
Cutting head advance speed resolution while slicing	From a minimum of -1.00mm/sec, through zero to a maximum of +1.00mm/sec
Cutting head advance speed resolution while slicing	0.10mm/sec
Cutting head advance speed max (fast mode when not slicing)	+/- 2.0mm/sec
Specimen retraction as blade retracts	Yes
Cutting head retraction speed (fast mode)	2.0mm/sec
Operating Modes	Manual or semi-auto 'slice window'
Blade oscillation frequency range (dependent on amplitude)	50-80Hz
Frequency step size	5Hz
Blade oscillation amplitude	Minimum: 0.5mm (nominal) Maximum:1.5mm (nominal)
Amplitude step size	0.5mm (nominal)
Cooling options	Ice bath or optional Model 7610A Tissue Bath Cooler
Power requirements	90-264 VAC 50/60Hz (switch mode PSU)
Power rating	65W
Fuse rating (115v or 230v)	T2A 250VAC
Light source	Powered from 5100mz
Dimensions	350mm W x 450mm D x 350mm H (excluding magnifier/light source)
Weight	15kg
Packaged weight & dimensions	Box wt & dims TBA









Vibrating Microtomes

7000smz-2, 5100mz-Plus and 5100mz

Top-of-the-range, high precision, vibrating microtomes... the finest slicers in the world for all specimen preparation.

The 7000smz-2 unit with a Z-axis deflection of Sub-Micron and a blade advance controllable to 10 microns/second. The 5100mz-Plus and 5100mz are very competitively priced high precision units with a Z-axis deflection of only 1-2 microns and a blade advance controllable to 10 microns/sec. On all units the section thickness step size is 0.001mm. The 7000smz-2 and 5100mz-Plus are supplied with their own Z-axis calibration verifier.

All types of sectioning is possible including sectioning for visual patching of neurological tissue, heart, and lung, and much more...

The effect of excessive Z-axis deflection on the health and viability of the tissue preparation has been much discussed since the publication of Jonas et al (2003) and the 7000smz-2 will now deliver perfect sections every time with sub-micron Z-axis deflection across a wide range of vibration speeds and amplitudes. The affordable 5100mz-Plus offers almost the same features with Z-axis deflection of 1-2 microns at all vibration speeds and amplitudes, which is less than most other microtomes on the market.

當次微米Z軸以各種振動速度和振幅偏轉1-2µm時，5100mz-Plus每次都能得到完美的切片，

新用戶界面操作簡單，功能齊全。5100mz與7000smz-2按鍵操作相似。多種功能包括簡單操作按鈕或根據自身的參數選擇來設置一系列可變的程序化參數、菜單。

The all-new user interface is both easy to use and versatile. The 7000smz-2 and both 5100mz models offer similar operation at the press of a button. The versatility includes simple operation at the push of a button or a range of changeable and programmable parameters and a menu enables the settings of your own preferences.

The 7000smz-2 also gives you longevity of performance; in other words it not only gives submicron performance out-of-the-box, but the advance vibrating mechanism does not contain bearings and other components subject to wear. Consequently it will retain the sub-micron Z-axis deflection performance for years to come, giving you consistency in your biological preparation.

通過使用冰水浴或電子的熱電冷卻器能冷卻組織。其他選擇包括使用LED冷光源或者切片時使用放大鏡或體視鏡能更清晰的觀察。

新型5100mz系列振動超薄切片機，與優質的7000smz-2共享用戶界面，方便用戶自行設置一系列可調參數。使用時可以完全手動操作，或者選擇半自動化的“切片窗口”模式（自動存儲切片起始和結束的位點）。

Tissue cooling is accomplished by the use of either an ice-water bath or an electronically comtrolled thermo-electric cooler. Other options include a LED cold light source and a magnifier or a stereoscope for clear observation whilst slicing.

The new 5100mz series Vibrating Microtomes share the user interface with the premium 7000smz-2, placing a wide range of adjustable parameters at the user's fingertips. Use in fully manual or the semi-automated "slice window" mode which automatically remembers the start and finish position of the slice.

5100 Series: Control box on umbilical cord ideal for operation in an isolated environment

5100mz-Plus最適合長時間保持切片活性，比如應用于電生理學領域進行數據記錄。通過調節刀片架和光學校準裝置，用戶能調整Z軸上的刀片偏轉2µm 。Z軸偏轉越小越能減少顫動 ，從而把對切片表面的損傷降到最低，進而最大限度的保留切片表面的細胞活性。

5100mz-Plus and 5100mz:

只有5100mz-Plus具有Z軸校準功能

Z軸機械誤差不到10µm

振動速度50-80Hz

振幅范圍0.5mm-1.5mm

可精確控制刀片行進（最小速度：0.1mm/sec）

設置刀片行進的起點和終點位置

遙控器可以滅菌使用

冰水浴鍋很容易移除進行清潔

可選擇冷光源和放大器觀察更清晰

可選擇半導體冷卻鍋

操作，手動設置都能完全使用遙控器

5100mz-Plus

The 5100-Plus is perfect for those who need to keep slices viable for longer, e.g. for electrophysiological field recordings. The user can calibrate the Z-axis deflection of the blade to 2µm with the adjustable blade holder and "optical" calibration device. Minimal Z-axis deflection reduces the "chatter" and minimizes damage to the slice surface, leading to greater viability of the cells on the slice surface.

5100mz-Plus and 5100mz:

· Includes the Z-axis calibration unit (5100mz-Plus only)

· Mechanism Z-axis error of less than 10µm

· Vibration speeds from 50 to 80Hz

· Amplitudes from 0.5mm to 1.5mm

· Fine control of the blade advance (min. 0.1mm/sec)

· Set start and stop position of blade travel

· Remote controls allowing for sterile use in culture hood

· Ice water bath easily removed for cleaning

· Optional cold light and magnifier for clear observation

· Optional Peltier cooled bath

· Contro; handset allows full remote control

Specifications	7000smz-2	5100mz series
Section thickness step size	1µm	1µm
Vertical (Z-Axis) calibration device Campden's 'Opti-cal' is calibrated with metrology equipment traceable to National Standards	'Opti-cal' included as standard	'Opti-cal' included as standard for 5100mz-Plus Optional extra for 5100mz
Optimal Z-axis Deflection	Sub-µm (± 0.1µm)	≈ 5-8µm (2.0µm ± 0.1 with calibration upgrade kit)
Max specimen size	33x50x19	33x50x19
Maximum (vertical) travel of bath table	19mm	19mm
Memory to store section thickness	Yes	Yes
Multiple user settings	8 different	8 different
Cutting head advance speed while slicing	From a minimum of -1.00mm/sec, through zero to a maximum of +1.00mm/sec	From a minimum of -1.00mm/sec, through zero to a maximum of +1.00mm/sec
Cutting head advance speed resolution while slicing	0.01mm/sec	0.10mm/sec
Cutting head advance speed max (fast mode when not slicing)	+/- 4.0mm/sec	+/- 2.0mm/sec
Specimen retraction as blade retracts	Yes	Yes
Cutting head retraction speed (fast mode)	4.0mm/sec	2.0mm/sec
Operating Modes	Manual, semi-auto 'slice window' or fully automated 'profile repeat'	Manual or semi-auto 'slice window'
Blade oscillation frequency range (dependent on amplitude)	50-120Hz	50-80Hz
Frequency step size	5Hz	5Hz
Blade oscillation amplitude	Minimum: 0.5mm (nominal) Maximum: 2.5mm (nominal)	Minimum: 0.5mm (nominal) Maximum: 1.5mm (nominal)
Amplitude step size	0.25mm (nominal)	0.5mm (nominal)
Cooling options	Ice bath or optional Model 7610A Tissue Bath Cooler	Ice bath or optional Model 7610A Tissue Bath Cooler
Power requirements	115VAC 60Hz or 230VAC 50Hz (selectable)	90-264 VAC 50/60Hz (switch mode PSU)
Power rating	100W	65W
Fuse rating (115v or 230v)	T2A 250VAC	T2A 250VAC
Light source	100-240VAC 3W mains connection	Powered from 5100mz
Dimensions	420mm W x 400mm D x 270mm H (excluding light source and microscope)	350mm W x 450mm D x 350mm H (excluding magnifier/light source)
Weight	35kg	15kg
Packaged weight & dimensions	Wooden crate 70 x 54 x 48cms, 55Kgs	Box wt & dims TBA
